Sprema - Biostation T2
Sprema - Biostation T2 - biometric scanner
Features :
- Suprema fingerprint technology
- Suprema Face detection with image logs
- Versatile interface
- Beautiful Design
- Power over Ethernet
- Intuitive Graphical User Interface
Configuration :

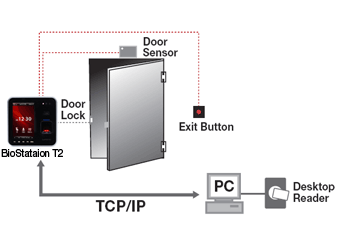

Standalone

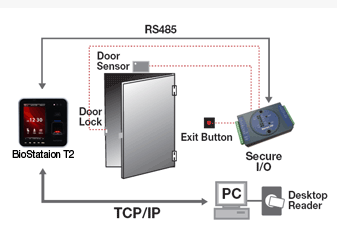

Standalone - Secure

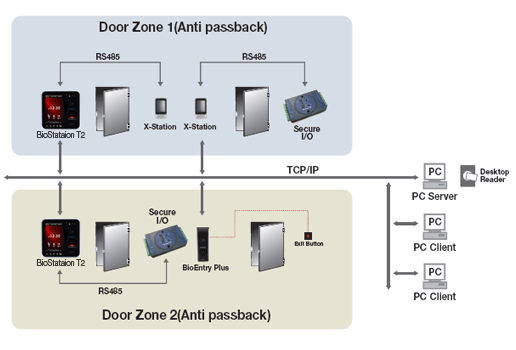

Distributed Access Control Systems
Specifications :
| Biometric | Fingerprint | |
| Main | ||
| IP Rating | - | |
| RF Option | 125KHz EM 13.56MHz Mifare/DesFire |
|
| Multi-Controller | Yes | |
| Capacity | Max. User (1:1) | 200,000 |
| Max. User (1:N) | 10,000 | |
| Max. Template (1:1) | 400,000 | |
| Max. Template (1:N) | 20,000 | |
| Max. Text Log | 1,000,000 | |
| Max. Image Log | 5,000 | |
| Interface | WiFi | Optional |
| TCP/IP | Yes | |
| RS-485 | 1ch Host 1ch Slave |
|
| RS-232 | Yes | |
| Wiegand | 1ch In or 1ch Out | |
| Input | 4 Inputs | |
| Relay | 2 Relays | |
| USB | Host and Slave | |
| SD Card Slot | Yes | |
| Hardware | CPU | 667MHz RISC + 533MHz DSP |
| Memory | 256MB RAM + 1GB Flash | |
| LCD | 5.0" Color Touch | |
| LED Indicator | Multi-Color | |
| Sound | 16bit Hi-Fi | |
| Operating Temp. | -20° to 50°C | |
| Tamper | Yes | |
| Power | 12VDC | |
| PoE | Yes | |
| Dimensions | 155 x 155 x 40 (WxHxD mm) | |
| Certificates | CE, FCC, MSIP(KCC), RoHS | |
| Compatibility | BioStar 1.x | Yes |
| BioStar 2 | - |
