Suprema Lift I/O
Suprema Lift I/O - elevator control system
Features :
- Suprema Lift I/O Control 12 floors per I/O Module
- Daisy chain up to 10 I/O modules per reader (Control up to 120 floors)
- Easy mounting and setup
- Rs-485 Secure communication
- Highly customizable user access

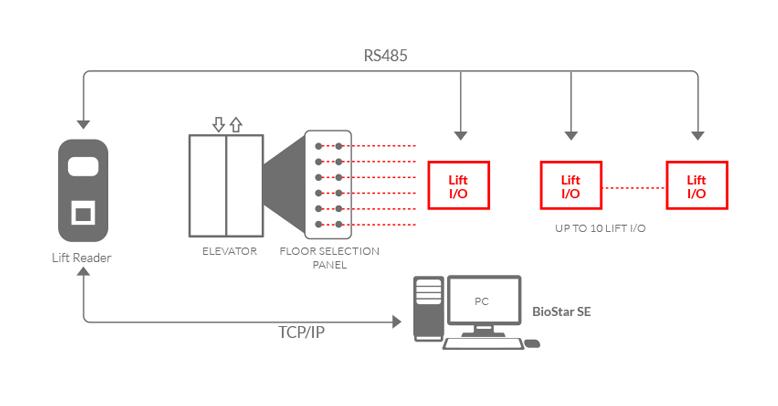

Configuration :
Specifications :
| Communication | RS-485 | |
| Interface | ||
| Inputs | 12 x TTL | |
| Relay | 12 x Form C | |
| Hardware | Power | 12V DC |
| Operating Temp. | -20°C to 50°C | |
| Dimensions | 140 x 240 x 32 mm (W x H x D) |
