Suprema Xpass biometric card reader
Suprema Xpass biometric card reader
Features :
- Powerful CPU
- IP access control with PoEIP65-rated waterproof Structure
- ultra Flexibility
Configuration :

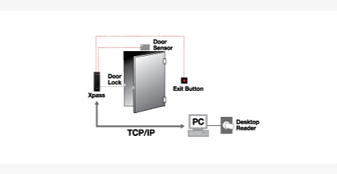

Standalone

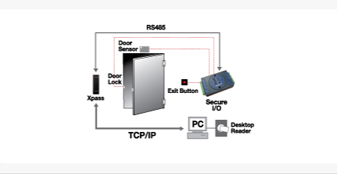

Standalone - Secure

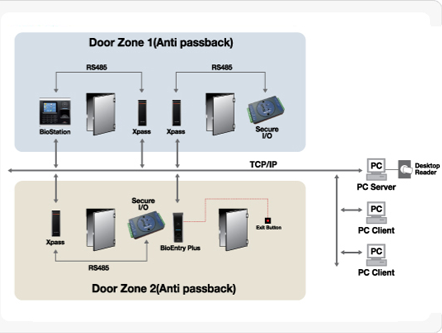

Distributed Access Control Systems
Specifications :
| Biometric | - | |
| Main | ||
| IP Rating | IP65 | |
| RF Option | 125KHz EM 125KHz HID Prox 13.56MHz Mifare/DESFire | |
| Multi-Controller | (RF Only) | |
| Capacity | Max. User (1:1) | 40,000 |
| Max. User (1:N) | 40,000 | |
| Max. Template (1:1) | - | |
| Max. Template (1:N) | - | |
| Max. Text Log | 50,000 | |
| Max. Image Log | - | |
| Interface | WiFi | - |
| TCP/IP | Yes | |
| RS-485 | 1ch | |
| RS-232 | - | |
| Wiegand | 1ch In or 1ch Out (Selectable) | |
| Input | 2 Inputs | |
| Relay | 1 Relay | |
| USB | - | |
| SD Card Slot | - | |
| Hardware | CPU | 533MHz DSP |
| Memory | 16MB RAM + 8MB Flash | |
| LCD | - | |
| LED Indicator | Multi-Color | |
| Sound | Multi-tone Buzzer | |
| Operating Temp. | -20° to 50°C | |
| Tamper | Yes | |
| Power | 12VDC | |
| PoE | Optional | |
| Dimensions | 45 x 130 x 27 (WxHxD mm) | |
| Certificates | CE, FCC, MSIP(KCC), RoHS | |
| Compatibility | BioStar 1.x | Yes |
| BioStar 2 | Yes |
