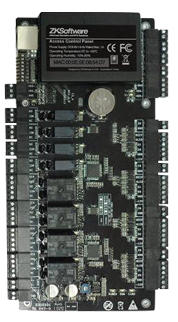

eSSL Four Door Access Controller - C3-400
eSSL Four Door Access Controller - C3-400
Four Door Access Controller Systems are built on flexible, open technology to provide management, real-time monitoring , and control of your access control system-all from a browser, with no additional software to install. Our secure Web-hosted infrastructure and centralized online administration reduce your IT costs and allow you to easily manage all of your access points in a single location.eSSL C3-400's versatile design features take care of present and future needs with ease and efficiency. It is one of the most rugged and reliable controllers on the market, with a multitude of built-in features. The eSSL C3-400 can communicate at 38.4 Kbps via RS-485 configuration or Ethernet TCP/IP networks. It can store up to 30,000 cardholders. SDK (Software Development Kit) is available for the customer to integrate the controller into existing access control software or to develop new software.
Features :
- Multiple hardware protection measure: There are over-current protection, over-voltage protection, reversal protection for the power supply and all the input and output terminal.
- Integration with Other Security Systems: eSSL C3-400 can be integrated with other security systems such as CCTV, fire alarm, BAS(building automation system) and other systems to configure total security system.
- Supports different Wiegand reader: The controller support different wiegand format, and can Connect to different reader, including ID card reader, Mifare card reader and HID reader etc.
- Input/Output Ports to Control Doors: connect with variety of sensors, alarms, exit buttons, electric lock and other devices.
- Variety of Communication Function: Using either serial or TCP/IP communication, it provides reliable network system.
- B/S structure software: It is easy to manage the system by browser from client PC.
- Normal open after first punch card can be setup
- Real-time Monitoring of Door status: Using the management software, it allows real-time monitoring and control of door opening and closing of the whole system.
- Simple Access Control System Configuration
- Interlock function:Link different doors with special logic that one door is Open, others should be closed.
- Multi-card operation:This function is used to manage visitors or to manage some special high secure place. The doors are opened when appointed number registered cards are read together.
- Anti-Passback
- Duress Mode
- SDK available:The system integrator can use the SDK to integrate the hardware into their existing access control software system or to develop a new
Advantages
- Easy to install and configure
- Embedded network interface for easy connectivity
- Industry standard weigand input facilitates to connect with any readers
- Cost saving
Technical Specifications :
| Model: | C3-400 |
| CPU: | 32bit MIPS CPU |
| RAM: | 32 M bits |
| Flash Memory: | 256 M bits |
| User: | 30,000 Card Holders |
| Event Buffer: | 100,000 |
| Power / Current: | DC 9.6V-14.4V, Rated Max. 1A |
| Reader Port: | 4ea (26 bit Wiegand, 8bit burst for PIN) |
| Communication: | RS 485, TCP/IP |
| Baud Rate: | 38,400bps (Recommended) / 9600bps, 19,200bps, 57,600bps (selectable) |
| Input Port: | 12ea (Exit Button#1, Exit Button#2, Button#3, Button#4, Door Sensor#1, Door Sensor#2, Door Sensor#3, Door Sensor#4, Aux#1, Aux#2, Aux#3, Aux#4) |
| Output Port: | 4ea (4 FORM-C Relay Output, SPDT 5A@36VDC/8A@30VAC), 4ea (4 Aux FORM-C Relay Output, SPDT 2A@30VDC) |
| LED Indicator: | Yes, LED indication for communication, power, status and punch card |
| Operating Temperature: | 0° to + 55° C |
| Operating Humidity: | 10% to 80% relative humidity non-condensing |
| Dimension (L*W)mm: | 218(W)*106(H)(single board) 345(W)*275(H)*70(D)(with power supply and metal box) |
| Certification: | CE, FCC, RoHS |

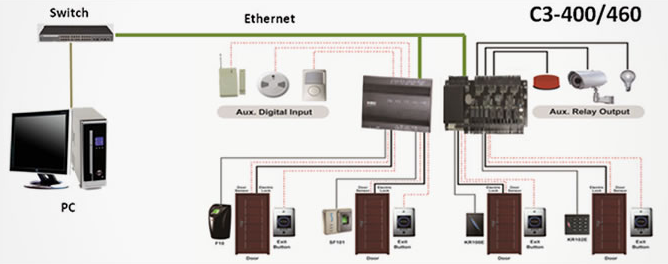

Access Control System - Connection Diagram
