ESSL iFace - 202
ESSL's iFace 202 biometric Face and Fingerprint Reader
ESSL's IFace 202 multi-biometric identification time attendance and access control terminal adopts latest Face 7.0 algorithm and large capacity memory. I Face series integrated 630MHz high speed Multi-Bio processor and high definition infrared camera enables user identification in the dark environment. Face and fingerprint multi-biometric identification method will be applicable more widely. All operations of I Face are designed to be performed on the 4.3 inches TFT touch screen. Multi-model communications includes RS232/485, TCP/IP, optional Wi-Fi or GPRS. Optional built-in 2000 mAh battery eliminates the trouble of power-failure.
Features :
- ESSL's IFace 202 Identification methods include Face, Fingerprint/RFID and/or Password.
- Elegant ergonomic design.
- 4.3" TFT touch screen is user-friendly and very intuitive.
- 6 user-defined function keys.
- Contact relays for door access control (wires to door strike or 3rd party panel).
- Web server management software via IE browser.
- Optional extendable scheduled-bell.
- Infra-red optical system enables user-identification in poorly lit environments.
- Optional built-in battery backup provides approx 4 hours continuous operation.
- Optional built-in wireless Wi-Fi or GPRS for wireless communication..
- Built-in contacts for 3rd party electric lock, door sensor, alarm, exit button, or bell..
- Wiegand Output for connections to 3rd party access control panels.
- ESSL's IFace 202 used in biometric attendance and biometric access control systems.
Technical Specifications :
| Face Capacity: | 400 (1:N) /700(1:G) /3000(1:1) |
| ID Card Capacity: | 10,000 |
| Fingerprint Capacity: | 2,000 |
| Transaction Storage: | 1,00,000 |
| Camera: | High Resolution Infrared Camera |
| Communications: | TCP/IP, RS232, RS485 |
| USB-HOST: | Two USB-Host |
| Processor: | Multi-Bio CPU 630 MHz |
| Hardware Platform: | 600 Multi-Medum Development Platform |
| Identification time: | ≤2 seconds |
| FAR: | ≤0.0001% |
| FRR: | ≤1% |
| Operating Temperature: | 0°C - 45°C |
| Operating Humidity: | 20%-80% |
| Access Control Interface: | 3rd party Electric lock, Door Sensor, Exit button |
| Power Supply: | 5V DC 3A |
| Access Attendance Standard Function: | ID Card(302 optional) ,Automatic Status Switch |
| Optional Function: | Mifare Card , Short Message ,WebServer, GPRS ,Battery Back (200 mA) ,9 Digit User ,Work Code |
| Wigand Signal: | Output |
| Alogrithm Version: | Face 7.0 |
| Display: | 4.3 Inch TFT Screen |
| Gross Weight: | 1.8 Kg |
| Language: | English |
| Dimension(WxHxD): | 193.6 X 147.6 X 101 mm |

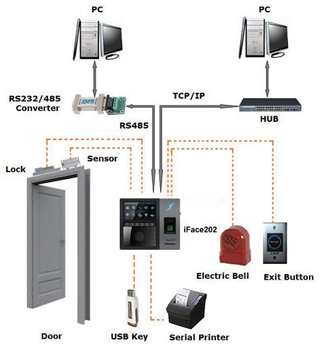

Connection Diagram :
