ESSLs Multibio 700 Multi

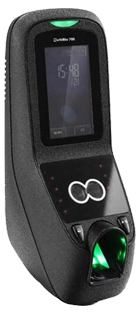

ESSLs Multibio 700 Multi- biometric Access Control cum Attendance Machine
When using ESSL MultiBio 700, users can identify or verify themsleves either by face, finger, card ID or PIN/Password. The TFT color touch screen of essl's MulitiBio 700 provides ease of use and a rich user experience.
The ESSL MultiBio 700 uses state of the art 3D imaging technology while also providing hygienic 100% touch-free biometric authentication.
The ESSL MultiBio 700 utilizes ZK's latest face and fingerprint matching algorithms which are even faster than its predecessor.
ESSL"s MultiBio 700 can one to many (1:N)match up to 400 faces and 2000 fingerprints.
When users glance into the essl Multibio MB700 camera, it captures the relative position, size, and shape of the user's eyes, nose, cheekbones and jaw. These parameters are then used to create a biometric template which is then used to subsequently verify or identify each user.
The ESSL MultiBio 700 can be used as a stand-alone access control reader by connecting a door lock, exit switch, alarm and door sensor to the relay contacts. The Wiegand IN and OUT ports can be used to connect 3rd party access control panels and peripherals. The ESSL MultiBio 700 also includes a USB port for offline data backup/management.
For even more security, multibio 700 can be purchased with an internal ID card reader which adds still another layer of security. multibio 700 comes with a very easy to navigate color TFT touch screen making the MB700 functional, secure and very easy to use.
Features :
- essl multibio 700 Identification methods include Face, Fingerprint/RFID and/or Password.
- Elegant ergonomic design.
- 3.0'' TFT touch screen provides rich user experience and intuitive user interface.
- TCP/IP, RS232/485 communication and USB Host.
- Wiegand input for working with wiegand reader, weigand ouput for connecting to access control panel.
- Optional with ID card module or MIfare card module.
- Professional access control compatible with 3rd party door sensor, alarm, exit button, wired bell and electric lock.
- Infra-red optical system enables user-identification in poorly lit environments.
- 50 time zones, 99 groups and 10 unlock combinations, anti-pass back and dismantle function.
- Two dedicated keys on the front panel, one for door bell and other for toggling the identification mode between face and finger.
Technical Specifications :
| Face Capacity: | 400 |
| ID Card Capacity: | 10,000 |
| Fingerprint Capacity: | 2,000 |
| Transaction Storage: | 1,00,000 |
| Camera: | High Resolution Infrared Camera |
| Communications: | TCP/IP, RS232, RS485 |
| USB-HOST: | Two USB-Host |
| Processor: | Multi-Bio CPU 630 MHz |
| Memory: | 256M Flash, 64M SDRAM |
| Identification time: | ≤2 seconds |
| FAR: | ≤0.0001% |
| FRR: | ≤1% |
| Operating Temperature: | 0°C - 45°C |
| Operating Humidity: | 20%-80% |
| Access Control Interface: | 3rd party Electric lock, Door Sensor, Exit button |
| Power Supply: | 5V DC 3A |
| Access Attendance Standard Function: | ID Card(302 optional) ,Automatic Status Switch |
| Optional Function: | Mifare Card , Short Message ,WebServer, GPRS ,Battery Back (200 mA) ,9 Digit User ,Work Code |
| Wigand Signal: | Output |
| Algorithm Version: | Face 7.0 |
| Display: | 3.0 Inch TFT Screen |
| Gross Weight: | 0.87 Kg |
| Language: | English |
| Dimension(WxHxD): | 195 X 100 X 275 mm |

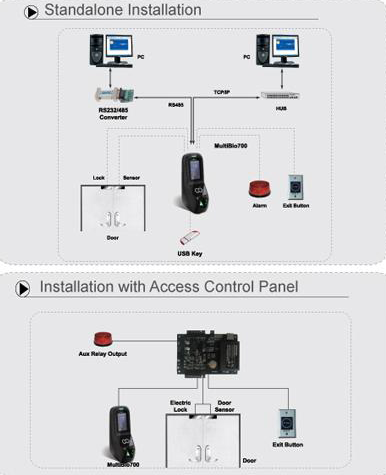

Connection Diagram :
