iSecure – Centralized Web based Access Control and T&A Solution for Corporates

iSecure – Centralized Web based Access Control and T&A Solution for Corporates

  • Customer has multiple tenants in the Facility.
  • Multiple Tenants are carrying following technology of cards
    • HID Proximity with 26 bit format)
    • HID Proximity with Corporate 1000 format
    • HID Proximity or iClass with OEM Format (34bit)
    • Mifare Cards with 32bit CSN
    • Desfire Cards with CSN
  • There would Flap barriers / Turnstiles at the entrance (Common area) wherein all the above cards (different Technologies & different Card formats to be accepted)

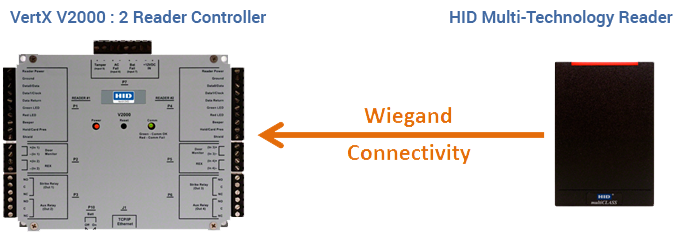

Solution using HID Controllers & Readers

Solution using HID Controllers & Readers

The Above VertX V2000 Controller can decode the following Card formats :

  • HID 26bit format on any of the listed technology
  • HID 35 bit Corporate 1000 format on any of the listed technology
  • Mifare & Desfire Card CSN
  • Any OEM format – 34bit, 37bit etc (using unique HEX value conversion)
  • Any OEM format – 34bit, 37bit etc (using unique HEX value conversion)

Note : VertX v2000 can read upto 253 types of formats at a time.

The Above Multi-Technology Reader can accept following Technology Cards :

  • HID Proximity (125KHz)
  • HID iClass (13.56MHz)
  • HID iClass SE (13.56MHz)
  • Mifare Cards CSN
  • Desfire Cards CSN

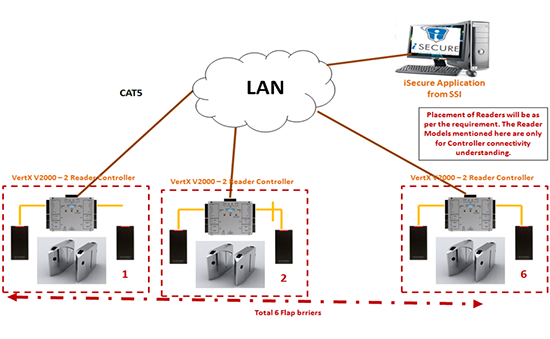

System Architechture

System Architechture

iSecure Access Control and T & A Application

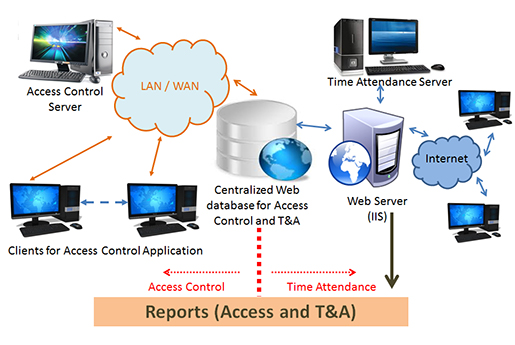

iSecure Access Control and T&A Application(Architecture)

iSecure Access Control (Architecture)

left arrow

Time Attendance

Master DB

masterdb
  • Company
  • Location
  • Department
  • Designation
  • Sub-Department
  • Controller – Reader
  • Card Formats
  • Time Zones
  • Holiday Groups
  • Door Groups
  • Access Groups
  • Employee addition & Classification
  • Import Employees
right arrow

Access Control

Controller Communication

  • Auto Discovery of Controllers
  • Controller Setup
  • Register/ Unregister Employees
  • Read Unknown Card Format
  • Open / Close Doors
  • Door Interlocking
  • Enable / Disable Doors
  • Reset Alarms
  • Reset Door Forced Alarms

Anti-passback

I/O Linker

Elevator Control

manage data

Manage Data

SMS Control

create users

Download Data (Real Time)

Database

masterdb

Access Reports

List of Available Graphs / Options on Access Control Dashboard

  • Location-wise Employee Status Summary
  • Access Zone Occupancy
  • Card Inventory Summary
  • Transaction Summary
  • Top 10 Alarms
  • Top 10 Transactions
  • Door-wise Access Grant Details
  • Door-wise Transaction Details
  • Department-wise Employee Status Summary
  • Card-Format wise Employee Distribution
  • Last 7 days Anti-Passback Violation
  • Last 7 days I/O Alarms
  • Door-wise Unknown Card Swipe Details
  • Door-wise Access Denied Details
  • Controller Health Status

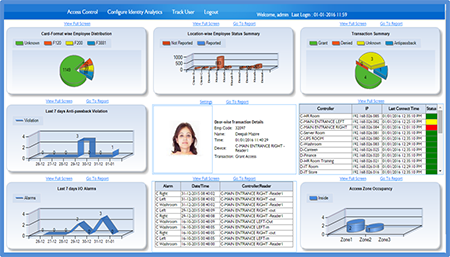

Access Control Dashboard

Access Control Dashboard

iSecure (Access Control) & Milestone Integration

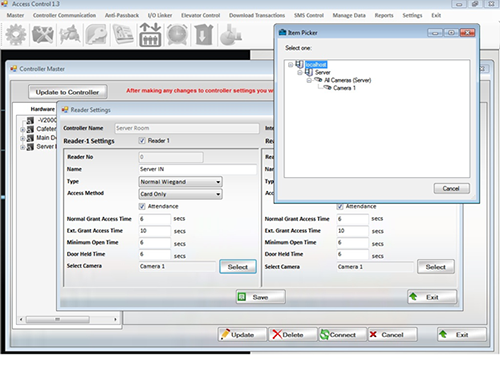

Milestone Integration (Association of Reader with CCTV Camera)

Milestone Integration (Association of Reader with CCTV Camera)
  • CCTV Camera can be associated to any reader where the Recording is required based on Access Control
  • As Milestone VMS application is independent of the CCTV Camera hardware, iSecure application is also independent of the CCTV Camera hardware.

Milestone Integration (CCTV Camera recoding Settings)

Milestone Integration (CCTV Camera recoding Settings)
  • CCTV Camera recording time can be set as a part of the configuration setting
  • These settings will be same for all the associated CCTV Camera’s.

Milestone Integration (Integrated Reporting)

Milestone Integration (Integrated Reporting)
  • During Integrated Reporting, against an Access Control Swipe, Image from the associated CCTV Camera is captured.
  • On the Right side of the screen, the Photograph during the time of Registration is shown along with the clip (as per the Configured Time)
  • There are navigations to look at the clip & also to Zoom incase Forensic is to be done.
