High Security Asset Protection

• Server Cabinet door and status monitoring for regulatory compliance
• Enables real-time audit capabilities and incident reporting
• Mechanical key override with SFIC

Multi-Technology Reader

• Complete scalable upgrade solution that supports both Prox and iCLASS credentials
• Uses Wiegand communication

Easy Installation

• Flexible design
• Retrofits onto most cabinets
• Non-handed

Standard Features

• Multi-Technology Reader
• Integrates easily with existing electronic access control system
• Hard wired Wiegand communication
• Mechanical key override capable with SFIC (SFIC not included)
• Static strength 250 lbs
• Lock and DPS status monitoring
• Dual voltage 12 or 24 VDC
• Non handed
• Designed for standard 25 mm x 150mm server rack lock openings

Accessories

• CABLEW10-8 : Wiegand wire 8ft extension, 10 conductor with Molex connectors

Finishes

• Black

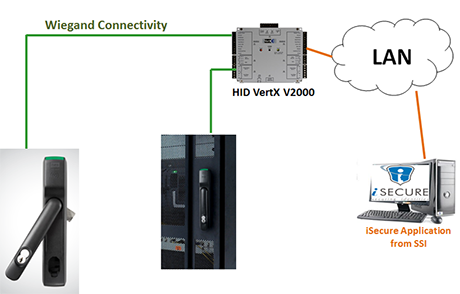

Key Features of HID VertX & Edge Controllers

• Real time data availability (when network is available)
• High Storage
  • Card Holder Storage: 2,50,000 Card Holders for VertX & 125000 for Edge
  • Transaction Storage: 99,999 transactions (for both VertX & Edge)
• 65,535 access groups can be created & 8 Access groups can be assigned to each card holder simultaneously.
• Extended Access Time can be assigned to each Card holder
• Auto Discovery controllers on the Network through application
• System Diagnostic facilities like Heartbeat, Reboot on Board & Task Monitoring is possible
• The Controllers work on both Static & DHCP ports for communication
