HIK Vision DS-2CD2E20F (-W)

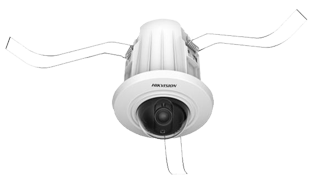

HIK Vision DS-2CD2E20F (-W) - Mini Dome Camera
.png)
Hik DS-2CD2E20F (-W) is an innovative night vision Mini Dome Camera for video Surveillance.
Camera :
| Image Sensor: | 1/3" Progressive Scan CMOS |
| Min. Illumination: | 0.01 Lux @ F1.2, AGC ON |
| Shutter time: | 1/3s ~ 1/100,000s |
| Lens: | 4mm fixed lens (2.8mm/6mm lens optional) Angle of view: 4mm: 85°, 2.8mm: 106°, 6mm: 52° |
| Lens Mount: | M12 |
| Adjustment Range: | Pan: -30° ~ 30°, Tilt: 0 ~ 75°, Rotation: 0 ~ 360° |
| Day& Night: | Electronic |
| Wide Dynamic Range: | Digital WDR |
| Digital noise reduction: | 3D DNR |
Compression Standard :
| Video Compression: | H.264/MJPEG |
| H.264 code profile: | Baseline Profile / Main Profile |
| Video bit rate: | 32Kbps~8Mbps |
| Dual Stream: | Yes |
Image :
| Max. Image Resolution: | 1920 x 1080 |
| Frame Rate: | 50Hz: 25fps (1920 x 1080, 1280 × 960,1280 × 720) 60Hz: 30fps (1920 x 1080, 1280 × 960,1280 × 720) |
| Image Settings: | Rotate mode, Saturation, Brightness, Contrast,Sharpness adjustable by client software or web browser |
| BLC: | Yes, zone configurable |
| ROI: | Support |
| Day/Night Switch: | Auto/Schedule/Triggered by Alarm In |
Network :
| Network Storage: | NAS (Support NFS,SMB/CIFS), ANR |
| Alarm Trigger: | Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception |
| Protocols: | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour |
| Security: | User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask |
| System Compatibility: | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
Interface :
| Audio | 1-ch 3.5 mm audio in (Mic in/Line in)/out interface (-S model) |
| Communication Interface: | 1 RJ45 10M / 100M Ethernet interface |
| Alarm: | 1x alarm I/O *only for –S models |
| On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
Wi-Fi Specification (-W) :
| Wireless Standards: | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range: | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth: | 20/40MHz Support |
| Modulation Mode: | 802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM |
| Security: | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Transmit Power: | 11b: 17±1.5dBm @ 11Mbps 11g: 14±1.5dBm @ 54Mbps 11n: 12.5±1.5dBm |
| Receive Sensitivity: | 11b: -90dBm @ 11Mbps (Typical) 11g: -75dBm @ 54Mpbs (Typical) 11n: -74dBm (Typical) |
| Transmission Rate: | 11b: 11Mbps 11g: 54Mbps 11n: up to 150Mbps |
| Wireless Range: | 50m(depend on environment) |
General
| Operating Conditions: | -10 °C ~ 40 °C (14 °F ~ 104 °F) Humidity 90% or less (non-condensing) |
| Power Supply: | 12 VDC ± 10%, PoE (802.3af) |
| Power Consumption: | Max. 4.2W |
| Dimensions: | Φ93.9×121.6 |
| Weight:: | 200g |
| NOTE | "-W" series support Wi-Fi (802.11b/g/n) and the modules with Wi-Fi function don’t support the 802.1X protocol. |
