HIK Vision DS-2CD6026FHWD-(A)

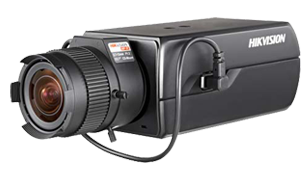

HIK Vision DS-2CD6026FHWD-(A) - 2MP Ultra Low-light Box Network Camera
Hik DS-2CD6026FHWD-(A) is an innovative 2MP Ultra Low-light Box Network Camera for video Surveillance.
Camera :
| Image Sensor: | 1/1.8" Progressive Scan CMOS |
| Signal System: | PAL/NTSC |
| Min. Illumination: | Color: 0.001 Lux @ (F1.2, AGC ON) B/W: 0.0001 Lux @ (F1.2, AGC ON) |
| Shutter time: | 1/1 s to 1/100,000 s |
| Slow shutter: | Support |
| Lens Mount: | C/CS mount |
| Auto Iris: | DC drive |
| Day& Night: | IR cut filter with auto switch |
| Wide Dynamic Range: | 120 dB |
| Focus: | ABF(-A model) |
Compression Standard :
| Video Compression: | H.264/MPEG4/MJPEG |
| H.264 code profile: | Baseline Profile / Main Profile / High Profile |
| Video bit rate: | 32Kbps~16Mbps |
| Audio Compression: | G.711/G.722.1/G.726/MP2L2 |
| Audio Bit Rate | 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2) |
| Triple Stream: | Yes |
Image :
| Max. Image Resolution: | 1920 x 1080 |
| Frame rate: | 50Hz:50fps(1920×1080), 50fps(1280×960), 50fps(1280×720) 60Hz:60fps(1920×1080), 60fps(1280×960), 60fps(1280×720) |
| Third Stream | Independent with Main Stream and Sub Stream, up to 50Hz: 25fps (1920 × 1080) 60Hz: 30fps (1920 × 1080) |
| Image Enhancement: | BLC/3D DNR/ROI/Defog/EIS |
| Image Settings: | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser |
| Regional Cropping: | Support |
| Picture Overlay: | LOGO picture can be overlaid on video with 128x128 24bit bmp format |
| Day/Night Switch: | Auto/Schedule/Triggered by Alarm In |
Network :
| Network Storage: | Micro SD/SDHC/SDXC card with ANR (up to 64G), NAS (Support NFS, SMB/CIFS) |
| Alarm Trigger: | Line crossing detection, Intrusion detection, Defocus detection, Scene change detection, Motion detection, Face detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception |
| Protocols: | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour |
| Security: | User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask |
| System Compatibility: | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
Interface
| Audio Input: | 1-ch 3.5 mm audio interface, Mic in/Line in. 1 built-in Microphone |
| Audio Output: | 1-ch 3.5mm audio interface (line level, 600 Ω) |
| Communication Interface: | 1 RJ45 10M/100M Ethernet port, 1 RS-485 interface and 1 RS-232 interface |
| Alarm: | 1 input, 1 output (up to DC24V 1A or AC110V 500mA) |
| Video Output: | 1Vp-p Composite Output (75 Ω, BNC) |
| On-board storage: | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button: | Yes |
Audio
| Environment Noise Filtering: | Support |
| Audio I/O: | Support dual audio track, stereo |
| Audio Sampling Rate: | 16kHz / 32kHz / 44.1kHz / 48kHz (-S) |
Smart Feature-set
| Behavior Analysis: | Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal |
| Line Crossing Detection: | Cross a pre-defined virtual line |
| Intrusion Detection: | Enter and loiter in a pre-defined virtual region |
| Region Entrance: | Enter a pre-defined virtual region from the outside place |
| Region Exiting: | Exit from a pre-defined virtual region |
| Unattended Baggage: | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials |
| Object Removal: | Objects removed from the pre-defined region, such as the exhibits on display. |
| Exception Detections: | Scene change detection, Sudden audio increase/decrease detection, Audio loss detection, Defocus detection |
| Recognition: | Face detection recognition |
| Statistics: | Object Counting (Entrance and Exit object number is accounted and showed on screen in real time) |
General
| Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
| Power Supply: | 24VAC± 10%, 12 VDC ± 10%, PoE (802.3af) |
| Power Consumption: | Max. 6 W (Max. 9W with IR cut filter on) |
| Dimensions: | 69.8×58×145 mm (2.75” × 2.28” × 5.71”) |
| Weight: | 830 g (1.83 lbs) |
