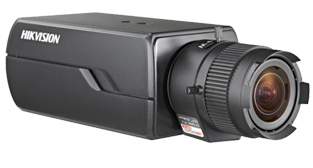

HIK Vision iDS-2CD6024FWD/F
HIK Vision iDS-2CD6024FWD/F - Intelligent Camera
Hik iDS-2CD6024FWD/F is an Intelligent Camera for video Surveillance.
Camera :
| Image Sensor: | 1/2.8" Progressive Scan CMOS |
| Min. Illumination: | Color: 0.01 Lux @ (F1.2, AGC ON), B/W: 0.001 Lux @ (F1.2, AGC ON) |
| Shutter time: | 1/1s ~ 1/100,000s |
| Slow shutter: | Support |
| Day& Night: | IR cut filter with auto switch |
| Wide Dynamic Range: | 120DB |
| Digital noise reduction: | 3D DNR |
Compression Standard :
| Video Compression: | H.264/MPEG4/MJPEG |
| Video bit rate: | 32Kbps~16Mbps |
| Audio Compression: | G.711/G.722.1/G.726/MP2L2 |
| Audio Bit Rate | 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2) |
| Triple Stream: | Yes |
Image :
| Max. Image Resolution: | 1920 x 1080 |
| Frame rate: | 50Hz: 25fps(1920 × 1080,1280 × 960,1280 × 720) 60Hz: 30fps(1920 × 1080,1280 × 960,1280 × 720); |
| Image Settings: | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
| BLC: | Yes, zone configurable |
| HLC: | Yes |
| Smart Defog: | Yes |
| EIS: | Yes |
| ROI: | Support |
| Picture Overlay: | LOGO picture can be overlaid on video with 128x128 24bit bmp format |
| Day/Night Switch: | Auto/Schedule/Triggered by Alarm In |
Network :
| Network Storage: | Micro SD/SDHC/SDXC card (128G), NAS(NFS, SMB/CIFS), edge recording |
| Alarm Trigger: | Intrusion detection, audio exception detection, defocus detection, motion detection, face detection, dynamic analysis, tampering alarm, network disconnect, IP address conflicts, storage exception |
| Protocols: | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour |
| Security: | One-key recovery, flash-prevention, three streams, heartbeat, mirror, password protection, video mask, Watermark, IP address filtering, Anonymous access |
| System Compatibility: | ONVIF (Profile S, Profile G), PSIA, CGI, ISAPI |
Intelligent
| Face Capture: | Accurately detect human faces, capture face images, or trigger an alarm |
Interface
| Audio: | 1 x 3.5mm audio input (Mic in / Line in) / output external interface |
| Communication Interface: | 1 RJ45 10M/100M Ethernet port, 1 RS-485 interface and 1 RS-232 interface |
| Alarm: | 1 input/1 output |
General
| Operating Conditions: | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
| Power Supply: | 24VAC± 10%, 12 VDC ± 10%, PoE (802.3af) |
| Power Consumption: | Max. 6 W |
| Dimensions: | 69.8×58×145 mm (2.68” × 2.56” × 5.70”) |
| Weight: | 830 g (1.83 lbs) |
