DVR XP - 4/8/16 Channel H.264 Digital video Recorder with Access Control

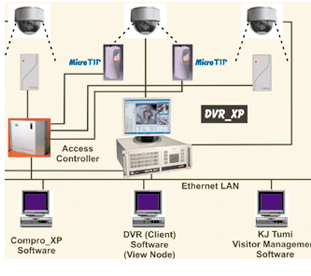

DVR-XP is a digital video surveillance system integrated with Checkmate XP Physical Access Control System designed to meet the requirements of modern security markets. DVR XP uses H.264 based Stand Alone DVR . Video recording is Time based, Motion Based and Access Based. The DVR is connected to the Checkmate XT/XP Access Control Hardware on Ethernet LAN. The cameras are mounted to view one or more RFID/Biometric readers mounted on doors The Unique feature of this system is that Video is stored based on the Personnel ID generated at the RFID/Biometric readers resulting in foolproof security. Meant for Offices, Buildings, Software companies and industries DVR XP online provides a cost effective intelligent digital surveillance solution. .

Application

• Time & Attendance Application - No proxy even without Biometric
• Car Park Automation -Licence Plate Picture Storage.
• Main Lobby Surveillance - Matching Photo ID Unobtrusively
• Server Room ,Record Room Surveillance etc

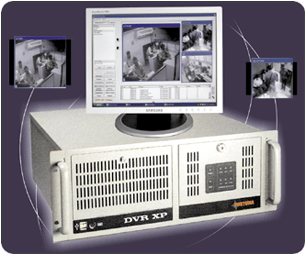

DVR hardware

Main Features

• Real Time OS.,Embedded MCU.
• High performance DSP hardware compression.
• H.264 video compression algorithm.
• DS-7004HI : 4 Channel DVR
• Total frame is 100/120FPS (PAL/NTSC) at CIF resolution.60/64 FPS (PAL/NTSC) at 2CIF resolution. 48/52 FPS (PAL/NTSC) at DCIF resolution. 32/36 FPS (PAL/NTSC) at 4CIF resolution.
• DS-7008HI : 8 Channel DVR,Total frame is 200FPS (PAL) or 240FPS (NTSC) at CIF resolution.64/72 FPS (PAL/NTSC) at 2CIF resolution.
• DS-7016HI : 16 Channel DVR Total frame is 400FPS (PAL) or 480FPS (NTSC) at CIF resolution.128/144 FPS (PAL/NTSC) at 2CIF resolution.
• Multi-zone motion detection. Mask function to mask sensitive area.
• View tampering alarm function for spiteful camera block.
• Video signal loss alarm function. Position configurable OSD&LOGO.
• Both constant bit rate and variable frame rate. Storage Function
• For DS-7000HI, support 4 HDD or 2 HDD and 1 IDE CD-RW/DVD-RW, and each HDD can maximum support 2000GB. , HDD sleep mode. HDD S.M.A.R.T function. FAT32 file system.
• Record modes: all time record, motion detect record, external alarm record, motion & alarm record, motion | alarm record, manual record. Cyclic and non-cyclic record mode.
• USB flash disk, USB hard disk and USB CD-RW/DVD-RW for backup.

Preview & Playback function:

• Monitor video output. , VGA output.
• Playback fast, slow, pause, forward, backward, frame by frame, etc.
• User defined preview layout.
• Supports one channel playback

Network function:

• TCP, UTP, RTP, Multicast, DHCP, etc.
• ADSL (PPPoE) dialup function.
• Remote playback, download the recorded files in DVR.
• Remote control PTZ.
• Support Internet Explore for network preview.
• Remotely get alarm information of DVR.

Features : Access Control hardware

• 4/8/16 reader capable Controller with Ethernet output.
• Built in Power Supply for Controller, Readers & Locks
• Readers can be Proximty/Smart Card/Biometric (upto 100m from panel)
• Can interface upto 16 locks.
• 16 exit switches.
• 10000 transaction storage, 2000 users validation,
• 16 Time zones, -- Holiday Zones, Area Restriction
• Anti passback
• Specific gates can be assigned for Attendance
• Online Access Control Data with Audit Trail of Personnel Movement
• Visitor Management System : Data Entry, Badge Printing, Access Right Definition.
• Remote Lock Operation

Features: DVR cum Access Control System

• Cameras are logically mapped to one or more readers for online capturing of video data on card show.
• Access Control Transaction Details with pre and post event video playback.
• Reference Image & name of personnel gets shown against backdrop of card show on video for personnel validity checking
• Search for Historical Video data based on Date, Reader & Personnel ID
• Online Access Control Data uploading with Audit Trail of Employee Movement
• Access Control transaction details with pre & post event video play
• Multiple floor maps with User definable back ground & scalable camera window (view mode or Ionmode)
• Camera video can be flexibly mapped to one/many floor map.
• Camera can be set in Motion Detection Mode with User Definable Active Area setting.
• Visitor Data entry, Badge Printing & Access right definition in online mode.
• Multiple client Access over Ethernet LAN to view Video, Access Transaction & Video against Access card show.
• Access Control Alarms & Events Logged with DVR Alarms for Analysing Sequence of Events

Ordering Information:

• DVR_XP : 8 Channel DVR with Industrial Hardware & Access Control Integration
• DVR_XP/4 : 4 Channel DVR with Industrial Hardware & Access Control Integration
• DVR/8 : Add-on 8 Channel DVR Card Hardware compatible to DVR XP
• DVR/4 : Add-on 4 Channel DVR Card Hardware compatible to DVR XP
• Camera : Dome Camera
• Power Supply : 12V/10 Amp Power supply
• Hard Disk : 320 GB Hard Disk
• Monitor : 15/19 “ TFT Flat Screen Monitor
• Camera Cable : Camera Cable
• Checkmate XP : Access Controller with 16 Reader I/F, 16 Relay Output
• Checkmate XP/8 : Access Controller with 8 Reader I/F,8 Relay output
• Checkmate XT : Access Controller with 4 Reader I/F, 4 Relay Output
• Checkmate XL : Access Controller with 2 Reader I/F,2 Relay output
• Reader : (a) MicroPROX (b) MicroSMART (c)HID Prox Point (d)iClass Reader(HID)
• COMCON : RS232C to RS485 Converter
• COMCON TCP/IP : RS232C to Ethernet Converter on TCP/IP Protocol
• ID Card: (a) Proximity Card (b) Contact Less Smart Card
• Door Lock: (a)Strike (b)EM Lock (c)Turnstile (d) DrOp Bolt (e)Boom
• Cable: (a)Reader Cable (b) Communication cable (c) Lock Cable
• Accessories : (a) Exit Switch (b) Door Sensor
