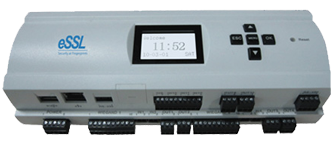

eSSL Elevator Access Control System – EC10 Biometric Lift Controller
eSSL elevator access control system uses the EC10 controller to restrict floor-level lift access based on each user's identity — verified via RFID proximity card or biometric fingerprint. Instead of a traditional elevator where any passenger can press any floor button, the eSSL EC10 enables only the floors a specific user is authorised to reach — keeping unauthorised persons off residential floors, server rooms, executive suites, and restricted zones.
Supplied and installed by Cybernetics Software — authorised eSSL dealer in Pune — the EC10 eSSL elevator access control system connects to floor button relay contacts inside the elevator panel. The 7-inch colour LCD display provides real-time status. The system supports up to 3 EX16 expansion boards, scaling from 10 floors (EC10 alone) to 58 floors (EC10 + 3×EX16) — suitable for high-rise residential towers, hospitals, hotels, and multi-tenant office buildings.
Where eSSL Elevator Access Control Is Used:
Residential Towers
Restrict residents to their own floor only — visitors cannot reach residential floors without authorisation
Hotels
Guests can only access their check-in floor — staff and maintenance have separate access profiles
Hospitals
ICU, OT, and pharmacy floors restricted to authorised medical staff only — visitors stay on permitted floors
Corporate Offices
Executive floors, server rooms, and R&D areas restricted to specific employees
Banks & Finance
Vault floors, data centres, and secure areas accessible only to authorised personnel via biometric verification
Industrial Facilities
Worker access limited to their work floors — hazardous or restricted areas protected from unauthorised entry
How the eSSL EC10 Elevator Access Control Works:
- The EC10 controller is wired to the floor button relay contacts inside the elevator panel
- A biometric fingerprint reader or RFID card reader is installed at the elevator entrance or inside the cabin
- The user presents their card or fingerprint at the reader
- The EC10 identifies the user and enables only the floor buttons that user is authorised to press
- All other floor buttons remain disabled — preventing access to restricted floors
- All access events are logged in real time (1,00,000 event capacity) and viewable via Ethernet connection
System Architecture – EC10 + EX16 Expansion:
Key Features of eSSL Elevator Access Control:
- Supports both RFID (proximity card) and fingerprint slave readers for user authentication
- 7-inch colour LCD display for real-time status and user feedback
- Fail-safe mode — maintains a safe default state during power failure or system fault
- Real-time upload of user access privileges — changes apply instantly without restarting
- Real-time event monitoring — all access events logged and viewable from the management PC
- User-defined floor access privilege — each user or group gets their own floor access profile
- Scalable: EC10 + up to 3 EX16 boards for buildings up to 58 floors
- Ethernet and RS485 communication to management computer
- 30,000 proximity card capacity and 3,000 fingerprint template capacity
- 1,00,000 event log capacity for full audit trail
Technical Specifications:
| Model | EC10 |
| Floor Button Control Relays | 10 |
| Fingerprint Capacity | 3,000 |
| Proximity Card Capacity | 30,000 |
| Event Log Capacity | 1,00,000 |
| Power Supply | 12V DC 1A |
| Communication to Computer | Ethernet, RS485 |
| Communication to EX16 | RS485 |
| Supported EX16 Boards | 3 (adding 16 floors each) |
| Display | 7-inch Colour LCD |
| Authentication | RFID Proximity Card + Fingerprint Slave Reader |
| Model | EX16 |
| Floor Button Control Relays | 16 (per board) |
| Communication to EC10 | RS485 |
| RS485 Address | Set by DIP switch |
| Power Supply | 12V DC 1A |
| Max Boards per System | 3 (total 48 additional floors) |
Frequently Asked Questions – eSSL Elevator Access Control
What is eSSL elevator access control?
eSSL elevator access control restricts floor-level lift access based on user identity — verified by RFID card or fingerprint. The EC10 controller manages floor button relay contacts: when an authorised user presents their credential, only their permitted floor buttons are enabled. It is ideal for residential towers, hospitals, hotels, and offices requiring floor-level access segregation.
How does the eSSL EC10 elevator controller work?
The EC10 connects to floor button relay contacts inside the elevator panel. When a user authenticates via card or fingerprint, the EC10 enables only their permitted floor buttons — all other floors remain locked. All events are logged in real time (1,00,000 event capacity) and viewable from a management PC via Ethernet.
How many floors can eSSL elevator access control support?
The EC10 base unit controls 10 floors. Each EX16 expansion board adds 16 floors, and up to 3 EX16 boards are supported — giving a total coverage of 10 + (16 × 3) = 58 floors. This suits most high-rise residential towers and commercial buildings in Pune.
Does eSSL elevator controller support fingerprint and card?
Yes. The EC10 supports both RFID proximity card slave readers and fingerprint slave readers. The right authentication mode can be chosen based on the building's security requirement — card only for residential, fingerprint for higher-security zones.
What is fail-safe mode in eSSL elevator access control?
Fail-safe mode ensures the system defaults to a safe, pre-configured state during power failure or system fault — typically allowing ground floor access to prevent entrapment — while maintaining security of restricted floors.
Is eSSL elevator access control suitable for apartments?
Yes. Residential towers use the EC10 to restrict each resident's RFID card to their own floor — visitors cannot reach residential floors without the resident's physical card. It significantly improves building security and resident privacy in multi-storey apartments.
Where can I install eSSL elevator access control in Pune?
Cybernetics Software Pvt. Ltd. is an authorised eSSL dealer in Pune providing supply, installation, and configuration of the EC10 elevator access control system. Call 09028006464 or email sachin@csplsoftware.com for a site assessment, demo, and quote for your building.
