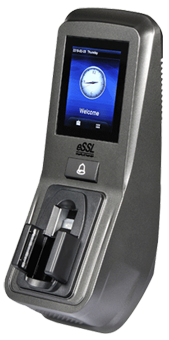

eSSL FV350
eSSL FV350 – Finger Vein Biometric Device for High-Security Attendance & Access Control
eSSL FV350 is an advanced finger vein biometric device developed using independent R&D finger vein technology. By scanning the unique blood vessel pattern inside the finger using near-infrared light, the FV350 provides spoofing-resistant authentication that cannot be fooled by fake fingerprints or silicone replicas.
Built on the ZMM220 platform with a 1.2 GHz CPU and 2.8-inch capacitive touchscreen, the FV350 supports finger vein, fingerprint, password, and optional card authentication. With Wiegand input/output and TCP/IP/RS485 connectivity, it is a comprehensive eSSL biometric device for high-security access control environments in Pune.
Key Features:
- Independent R&D finger vein technology – highly spoofing-resistant
- 1,000 finger vein templates and 1,000 fingerprint templates
- Multi-modal: vein + fingerprint + password + optional card
- 2.8-inch capacitive touchscreen for modern, intuitive operation
- TCP/IP and RS485 communication
- Wiegand input & output for access panel integration
- EM RFID and optional Mifare card reader
- PULL SDK for custom software integration
- Wide temperature range: -10°C to 45°C
Technical Specifications:
| Core Board | ZMM220 |
| CPU | 1.2 GHz |
| Communication | TCP/IP, RS485 |
| Vein Capacity | 1,000 |
| Fingerprint Capacity | 1,000 |
| RF Card | EM, Mifare (Optional) |
| Authentication | Finger vein, fingerprint, password, card (optional) |
| Auxiliary Terminal | 1 Aux. Input |
| Wiegand | Input and Output |
| Display | 2.8-inch Capacitive Screen |
| Operating Voltage | DC 12V, 3A |
| Operating Temperature | -10°C – 45°C |
| Dimensions (L×W×T) | 232 × 91 × 117 mm |
| SDK | PULL SDK (new firmware) |
Frequently Asked Questions – eSSL FV350
What makes eSSL FV350 different from a standard fingerprint machine?
The FV350 uses finger vein technology which scans the internal blood vessel pattern using near-infrared light. Unlike surface fingerprints, vein patterns cannot be easily copied or spoofed with silicone or gelatin—making it far more secure for high-stakes access control.
Is eSSL FV350 suitable for government offices?
Yes. The FV350's anti-spoofing vein technology and multi-modal authentication (vein + fingerprint + card) make it ideal for government offices, defense facilities, research labs, and data centres requiring the highest identity assurance.
Does FV350 work in cold environments?
Yes. The FV350 operates from -10°C to 45°C, outperforming standard optical fingerprint sensors that struggle in cold conditions.
What is the Wiegand I/O for in FV350?
The Wiegand input allows the FV350 to connect to third-party access control panels, while the Wiegand output enables integration with slave readers for two-way entry/exit control.
Where can I get eSSL FV350 in Pune?
Cybernetics Software is an authorised eSSL dealer in Pune. Call 09028006464 for FV350 pricing, demo, and installation.
