Overview

Gateway 2000_Tip_Smart is a Time & Attendance System with a Biometric Finger Print Authentication Device , specifically designed to provide irrefutable personal verification . It is a standard , wall - mounted and self contained device with a Finger Print Scanner to enroll and verify users, store their Finger Records , keep transaction logs, and interface with computers. A RFID based Proximity Reader(EM or HID) or a Contactless Smart Card Reader(MIFARE or iClass) may be included. GATEWAY-2000 TIP provides enhanced security , superior speed and most importantly eliminates Buddy/Proxy Punching. Only authorized personnel are allowed access to the protected area or to Clock IN/OUT. All the exacting demands of the Time Office are packed into this product which has a microcontroller based as its heart , having the capacity to cater to large organisations and high security premises.

The users have to Enroll their Fingerprints. 2 fingers of each user can be enrolled. With a verification of user through Fingerprint Scan, Employee IN & OUT times are stored as Soft Data which are then uploaded to a PC for Time Office related reports and Payroll Generation thus automating the Time Office. This reduces the manual drudgery of Data Entry, Register maintenance and monthly requirement of Punch Cards for conventional Time Clocks to a minimum.

Gateway 2000-Tip-Smart : “Finger Match-on-Card”

Gateway 2000_Tip_Smart is the Complete Attendance System taking advantage of Finger Identification technology and Smart Card technology. With a built in Contactless Smart Card Reader & Biometric Fingerprint Reader, the system implements “ MATCH-ON-CARD” functionality which results in :

• No Proxy/Buddy Punching
• Unlimited Users Per System
• Employee Verification not limited by Geography
• No fear of losing finger data in event of hardware failure
• Secured Smart card for data integrity
• Built-in Finger Enrolment Feature without additional Hardware

Gateway 2000-Tip : “Identification 1:N”

Gateway 2000_Tip is a standalone Attendance/Access Control system using fingerprint Identification(1:N) technology. Upto 4000 fingers/2000 Users can be enrolled on the Gateway 2000_Tip with built-in finger enrolment feature. Enrolled fingerprints can be transferred to other terminals in the RS485 or Ethernet network via Data Download PC. Attendance transaction is logged based on finger Identification .

Gateway 2000_Tip can optionally be used along with a built in Proximity Card Reader for Double Authentication ( 1: 1) . With a Proximity Reader, Finger Print Module and KeyPad , it gives the operator a choice of access modes in any combination of Card, Fingerprint and PIN entries.

Features:

Gateway 2000_Tip_Smart Features

• “Match-on-Card” Technology with Individual Security level, Stand alone offline operation
• User carries finger on Card, Suitable for large Organization, Employees can give their attendance at any place of choice
• Support for ISO 14443A contactless 1K/4K Mifare Smart Card, 50 mm read range
• Stores two fingerprint on a Mifare 1K/4K Card using only 12 sectors (256 byte minutiae per finger)
• Flexible storage of Finger on Card, enables use of existing cards containing legacy data
• Unique Personal Keys, protects against unauthorized re-enrollment of cards
• Optical Fingerprint scanner, 500 DPI resolution Scratch, Dust resistant
• 32 bit High Speed Digital Signal Processor based Minutiae extraction
• One touch Verification/Identification Mode with Transaction time < 1.5 Sec (including card read)
• LCD displays Employee Name, and “Allowed” message upon authentication (with Date & Time)
• 25000 Attendance transaction storage with battery back-up for 10 years
• Optional : Additional Exit Smart Card Reader/Exit Switch, Lock output for Access Control
• Built in Power Supply with Battery back up for 8 hours in event of Power Failure

Communication

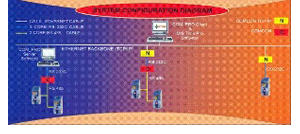

Networking of Terminals can be accomplished via the RS 232C/485/Ethernet (LAN/WAN)/WiFi/ZigBee/Bluetooth or dial up modem communication using suitable External Hardware.

Finger ID Sensor Specification

• CPU: 400MHz DSP CPU/4MB Memory
• Enrollment Time: 800ms for finger capture (Typical)
• Identification Time (1:N): <1 Sec. (Typical) for 1000 Users
• Verification Time (1:1): <1 Sec. (Typical)
• ID Number: Upto 8 Digit ID Card
• Template Memory : 2000 Users(2 Finger each) upgradable to 4750 Users
• Encryption: 256 Bit AES (FP Data Protection)
• EER: <0.1%
• Allowable Finger Rotation: +/- 90 Degree
• Allowable Finger Displacement: +/- 5mm
• Sensor: Optical (16mm X 19mm)
• Image Size: 280 X 320 pixel, 500 DPI
• Template Extraction Technology: Minutiae-only Algorithm
• Finger Enrollment Class: 5 Level depending on quality

Technical Information

• CPU : High Performance 16 Bit Philips Micro Controller
• Template Memory : 2000 Users(2 Finger each) upgradable to 4750 Users
• Memory: 25000 Transaction Storage
• Battery Back-up: Retention of Clock & Data Upto 10 Years
• Communication: RS232C or RS485 (Optional Ethernet/ WiFi)
• Data Upload Speed: 1000 Records/ Minute (9600BPS)
• Card Reader Input: Contactless MIFARE Smart/ EM Proximity/HID Proximity or iClass Card Reader
• Keyboard: 4X4 Key Membrane Key Keyboard
• Display: 128 X 64 Pixel / 16 X 4 Char. Backlit LCD
• Power: Wide Range SMPS (110-260V@50Hz +/-5Hz
• Uninterrupted Power: Using 7.2AH MFB for 8 hours Back-up
• Relay Output: 12V Wet / Potential Free Contact O/P
• Dimension: 223 (H) X 100 (W) X 86 (D) mm
• Enclosure: Dust Resistant ABS Casing
• Operating Temperature: 0-50 Degree Centigrade
• Modularity: 2 Box Design (Controller & UPS Box)

Ordering Information

• Gateway 2000 _Tip: Attendance Recording & Access Control System with built-in Biometric Finger Print Sensor & Keyboard with 1: N feature
• Gateway 2000_Tip_Smart: Attendance Recording & Access Control System with built-in Biometric Finger Print Sensor + Contactless Smart Card Reader
• FIPL 150 : Built-in EM Proximity Reader for Gateway 2000_Tip
• FIPL 200 : Built-in HID Proximity Reader for Gateway 2000_Tip
• FIPL 300 : Built-in MIFARE Smart Card Reader for MicroBEN Bio
• FIPL 400 : Built-in HID iClass Reader for Gateway 2000_Tip
• MicroTIP/MicroPROX/Prox Point Plus/MicroSMART : Exit Reader option
• COMCON : RS 232C to RS485 Converter
• COMCON TCP/IP : RS232C to Ethernet Converter
• COMCON Wifi : RS232C to Wifi Converter
• COMCON Blue Tooth : RS232C Blue Tooth Converter
• COMCON Web Server: Web Server Comm. Interface
• MIS Time Pro LITE: Time Office Report Generation Software suitable for Office (Single Shift Operation)
• MIS Time Pro ENTERPRISE: Time Office Report Generation Software suitable for Factory/Large Enterprise (Multi Shift Operation)
• eTime Pro: Web Based Attendance Management Software
• PayLITE: Pay Roll Calculation & Generation Software
• ID Cards: (a)1K/4K Smart Card (b) Proximity Card (c) HID Card
• Door Lock: (a)Strike (b)EM Lock (c)Turnstile (d)Drop Bolt (e)Boom Barrier
• Accessories: (a)RS232C/RS485/CAT 5 Comm. Cable (b) ReX Cable
