eSSL TF1700

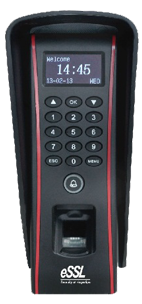

eSSL TF1700 – IP65 Outdoor Biometric Fingerprint Access Control Terminal
eSSL TF1700 is a rugged, IP65-rated outdoor fingerprint terminal from ESSL (ZK Technologies'). It is one of the world's smallest fingerprint terminals—designed for narrow outdoor spaces—and combines attendance recording with full access control in a weatherproof enclosure.
With 1-second identification speed, 2,200 user capacity, and a sleek OLED display, the TF1700 supports Fingerprint, PIN, and Card authentication modes. Its IP65 rating makes it ideal for factory gates, parking lots, construction sites, and any outdoor or semi-outdoor access point.
Key Features:
- IP65-rated: fully weatherproof and dustproof for outdoor installation
- 1-second fingerprint identification among 2,200 templates
- Access control: EM lock, door sensor, exit button, alarm
- Anti-pass-back for enhanced physical security
- Multi-factor authentication: Fingerprint / PIN / Card
- 3×5 keypad, doorbell, and built-in RF card reader
- 128×64 OLED display (white) for clear outdoor visibility
- 128 MB Flash + 32 MB RAM; TCP/IP, USB-Host, RS485
Technical Specifications:
| User Capacity | 2200 |
| Transaction Storage | 50,000 |
| CPU | 400 MHz |
| Memory | 128MB Flash + 32 MB RAM |
| Sensor | 500 DPI Optical Sensor |
| Communications | TCP/IP, USB-Host, RS485 |
| Identification Speed | ≤1 Second |
| FAR | ≤0.0001% |
| FRR | ≤1% |
| Authentication | Finger / PIN / Cards |
| Wiegand Ports | Input & Output |
| Operating Temperature | 0°C – 45°C |
| Operating Humidity | 20%–80% |
| Display | 128×64 OLED – White |
| Power | 12V DC, 1.5A |
| Dimension (W×H×D) | 90 × 190 × 39.5 mm |
| Ingress Protection | IP 65 |
| Language | English |
Frequently Asked Questions – eSSL TF1700
Is eSSL TF1700 suitable for outdoor installation?
Yes. The eSSL TF1700 carries an IP65 ingress protection rating, making it fully dustproof and protected against water jets—ideal for outdoor gates, factory entrances, and open car parks.
What is the identification speed of eSSL TF1700?
The TF1700 identifies 1:2200 fingerprints in under 1 second, ensuring fast and smooth access even during peak entry times.
Does TF1700 have access control features?
Yes. TF1700 supports EM lock connection, door sensor, exit button, alarm, anti-pass-back, and Wiegand I/O for third-party panel integration.
What display does the eSSL TF1700 use?
It uses a 128×64 white OLED display which offers excellent contrast and visibility in outdoor lighting conditions.
Can TF1700 read proximity cards?
Yes. The TF1700 has a built-in RF card reader supporting multi-factor authentication via fingerprint, PIN, or card.
