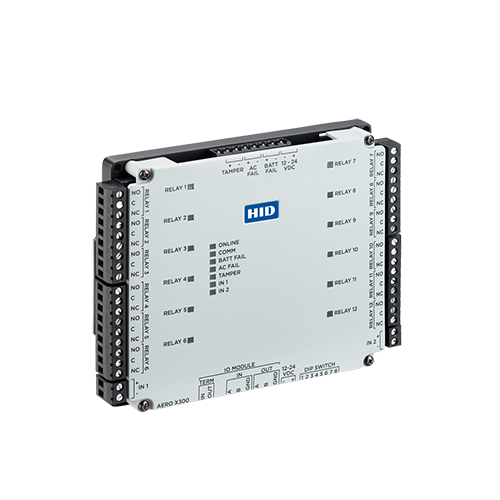

HID Aero™ X300
12-Relay Output Expansion Module with AES-256 Security
The HID Aero X300 delivers on-board IO support for up to twelve control points and four monitor points — pairing seamlessly with the X1100 intelligent controller for enterprise-grade access, elevator management, and custom automation rules.
Part No: X300A | VertX V300 Replacement
Product Overview
Scale Your Access Control with Intelligent Output Expansion
The HID Aero™ X300 is an output control interface module purpose-built for demanding enterprise environments. It extends the reach of the X1100 intelligent controller, giving security integrators a reliable, scalable path to managing dozens of physical outputs — from door strikes to elevator floors — under a single unified platform.
Built on HID Mercury technology, the backbone powering over 4 million panels installed globally since the early 1990s, the X300 delivers unmatched reliability. It is a direct form-and-fit replacement for the legacy VertX® V300, making upgrades straightforward without replacing existing enclosures or cabling.
- Controls up to 12 general-purpose relay outputs from a single module
- Chain multiple X300 units on a single X1100 for massive output expansion
- AES-256 encrypted communication between controller and IO modules
- Hardware crypto chips guard against key-theft and replay attacks
- Direct drop-in replacement for VertX V300 — no rewiring required
- DIN rail mountable using optional accessory bracket

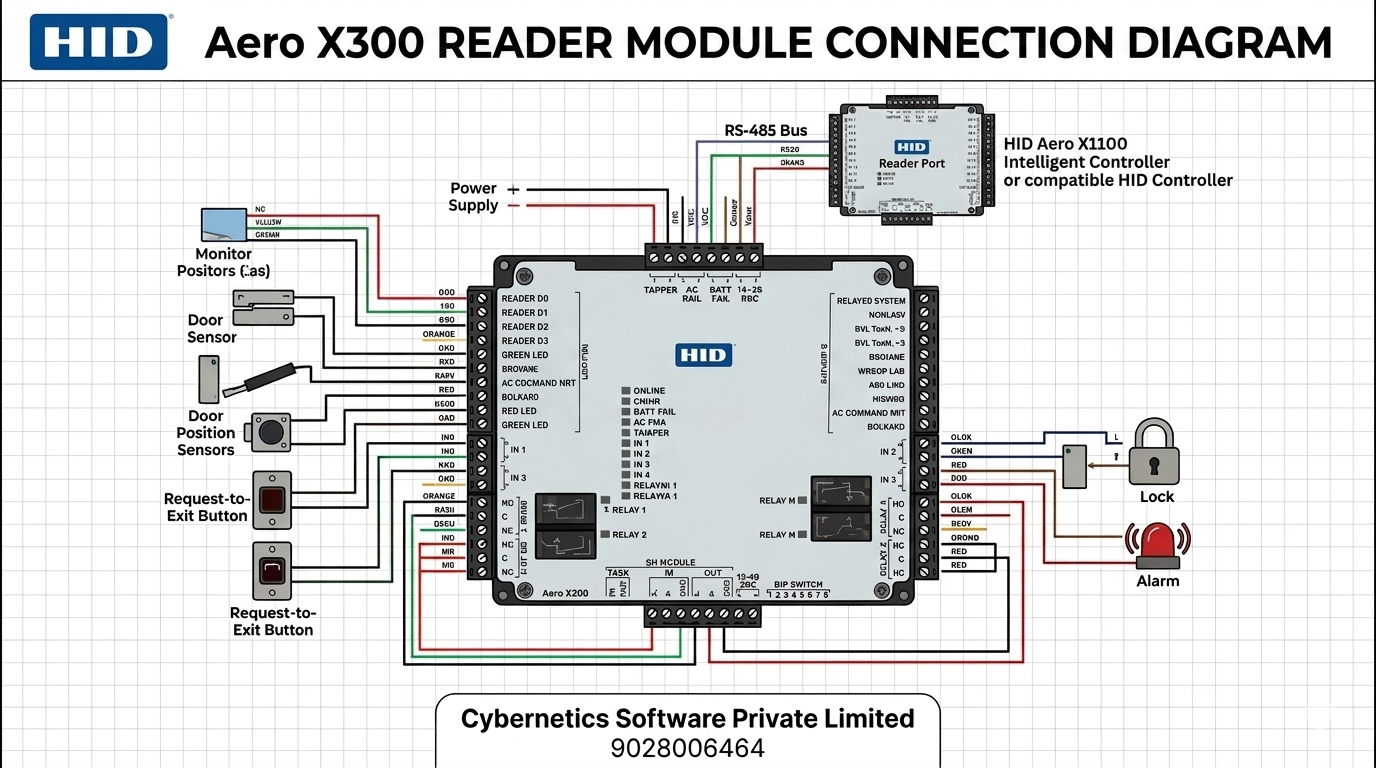

HID Aero X300 — System Connection Diagram
Why Choose the X300
Key Features & Capabilities
Custom Rules Processing
Combine the X300 with the X1100's custom rules engine to build complex conditional logic — trigger outputs based on input states, time schedules, or security events without custom scripting.
Elevator Floor Control
Integrate natively with the X1100 elevator processing engine to restrict or grant floor-by-floor access for cardholders — ideal for multi-tenant buildings and high-security vertical transport.
AES-256 IO Encryption
All communication between the X1100 intelligent controller and X300 IO module is protected by AES-256 encryption, preventing eavesdropping and man-in-the-middle attacks on the RS-485 bus.
Hardware Crypto Chips
Dedicated cryptographic hardware protects stored keys and credentials against physical extraction and brute-force attacks, providing a robust hardware root of trust for every module.
7-Level Threat Management
Define up to seven discrete threat levels to instantly reconfigure access permissions across the entire facility — from routine operations through partial lockdown to full emergency isolation.
VertX V300 Replacement
The X300 is a certified form-and-fit replacement for the legacy VertX V300 module, preserving existing enclosures, mounting hardware, and field wiring while delivering modern security capabilities.
Open Architecture
Works with HID's broad ecosystem of certified software partners. Switch or upgrade management platforms over time without any hardware re-investment or re-certification, protecting your capital expenditure.
Comprehensive LED Indicators
Dedicated status LEDs for power, heartbeat, online/offline state, reader activity, input status, and relay state make field diagnostics fast and intuitive without additional test equipment.
DIN Rail Mountable
The X300 supports standard DIN rail installation via an optional accessory bracket, enabling clean panel-board integration alongside PLCs, power supplies, and other DIN-mounted equipment.
Technical Data
Full Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Output Control Interface Module |
| Part Number | X300A |
| Relay Outputs | 12 × Form-C relays Contact rating: 2 A @ 30 V DC resistive |
| Supervised Inputs | 5 × supervised/unsupervised Standard EOL: 1 kΩ / 1 kΩ 1%, ¼ watt |
| IO Module Port | 1 × RS-485 (SIO) |
| Power Supply | 12 – 24 V DC (limited power source) |
| Dimensions | 164 mm × 140 mm × 26 mm (6.45″ × 5.51″ × 1.02″) |
| Cable — IO Module | Twisted pair, shielded, 24 AWG, 120 Ω — max 1,200 m (4,000 ft) |
| Cable — Power | 2-conductor shielded, 18–16 AWG — max 150 m (500 ft) |
| Cable — Alarm Inputs | Twisted pair, 30 max |
| Mounting | Surface mount (supplied screws) or DIN rail (accessory) |
| Legacy Replacement | VertX® V300 (form and fit compatible) |
| Feature | Detail |
|---|---|
| IO Encryption | AES-256 between X1100 and X300 |
| Crypto Protection | Dedicated hardware crypto chips |
| Threat Levels | Up to 7 configurable levels |
| Anti-Passback | Local (via X1100) – offline capable |
| Tamper Detection | Supervised input monitoring for wiring faults |
| Platform Security | Data-at-rest encryption; SNMPv3 health monitoring; 802.1X port NAC |
| Item | Detail |
|---|---|
| Intelligent Controller | HID Aero X1100 / X1100C |
| IO Peer Modules | X100, X200, X300 (Aero); V100, V200, V300 (VertX) |
| Max Expansion | Up to 388 total outputs per X1100 (with multiple X300s) |
| Software Partners | Open architecture — multiple certified partners |
| Certification | UL 294 compatible power source required |
Platform Capabilities
Intelligent Controller & IO Module System Features
Change reader modes based on time thresholds and pre-alarm signals for benefits like global lockdown
Enable access rights or alerts for specific groups of users in real time
Create unique situational emergency alerts using highly detailed transaction information and data correlation
Use custom rules engine on X1100 to handle complex input-to-output logic without additional scripting layers
Duress signals from keypad readers automatically notify the host for immediate action in emergencies
Offline protection against improper card usage via local anti-passback capability even without network
Ability to monitor supervised input wiring to identify system faults or malicious physical attacks
Define up to 7 threat levels for instantaneous facility-wide access posture adjustment
Encryption of data at rest provides privacy for data stored on the intelligent controller
Monitor controller health on the network using SNMPv3 for proactive system oversight
802.1X port-based network access control prevents rogue devices from connecting to your infrastructure
AES-256 encrypted RS-485 communication between X1100 and all X300 IO modules
X1100 combines V1000 and V2000 capabilities — one SKU covers both legacy use cases for simpler ordering
Market-leading maximum operating temperature rating allows installation in harsh industrial environments
LED status indicators for power, heartbeat, online/offline, reader, inputs, and relays — instant diagnostics
DIN rail mounting accessory available for clean integration into standard electrical panels
Applications
Where the HID Aero X300 Excels
The X300's versatile relay-based output architecture makes it the go-to expansion module across a wide range of physical security environments.
Corporate Campuses
Manage dozens of electric strikes, mag-locks, turnstiles, and alarm outputs across multi-building campus environments from a centralised X1100 platform.
Hotels & Multi-Tenant Buildings
Elevator floor access management combined with output control for parking gates, pool access, and service areas — all governed by card-holder access schedules.
Industrial & Manufacturing
Rated for harsh operating temperatures, the X300 integrates with machinery interlocks, hazardous area alerts, and production floor access control seamlessly.
Government & Critical Infrastructure
AES-256 encryption, 7-tier threat level management, and hardware crypto chips satisfy demanding government security standards for critical facility protection.
Healthcare Facilities
Control medication room locks, emergency exits, nurse-call integrations, and ward access points while maintaining audit trails and compliance documentation.
Data Centres & Telecoms
Secure server cage locks, biometric readers, man-trap interlocks, and environmental alarm outputs with encrypted IO communications resistant to physical tampering.
