Society Access Control
System — Boom Barrier,
Elevator & Building-Wise Access
Cybernetics Software deployed a complete society access control system for DLF, Gurgaon — integrating HID V1000, V100, and V300 controllers with automated boom barriers for vehicle entry, tripod gates for pedestrian access, building and floor-wise card permissions, fire alarm integration, and multi-card format support for a fully automated residential security experience.
What is a Society Access Control System?
How a complete society access control solution secures every entry point in a residential complex — from the vehicle gate to the apartment elevator
A society access control system is an integrated security platform designed specifically for gated housing societies, apartment complexes, and residential communities. It uses HID access controllers, card readers, and access control software to manage and restrict entry at every security layer — vehicle entry gates, pedestrian turnstiles, building lobbies, and elevator floors — all from one centralised management console.
Unlike a standalone CCTV system or basic intercom, a society access control system is fully automated. A resident's car approaches the boom barrier and it opens automatically. Their HID card gives access only to their building and their floor — not to any other building or floor in the complex. Visitors are managed separately with temporary access. All events are logged in real time.
Cybernetics Software's deployment for DLF housing society, Gurgaon exemplifies this approach — integrating HID V1000, V100, and V300 controllers with boom barriers, tripod gates, building entry systems, elevator floor-wise access, fire alarm integration, and multi-card format support to deliver a fully automated, secure residential living experience.
Automated Boom Barrier — Vehicle Access
The boom barrier automatically opens when a registered flat owner's vehicle approaches — no stopping, no manual card swipe, no guard interaction needed for authorised residents.
Building & Floor-Wise Card Access
Each resident's HID card is programmed to grant access only to their specific building and floor — other buildings and floors remain locked to their card at all times.
Tripod Gate — Pedestrian Entry Control
Tripod turnstile gates integrated with HID controllers manage pedestrian entry to the society premises — residents tap their card to pass, visitors require security clearance.
Fire Alarm Integration — Automatic Release
All society access control points integrate with the fire alarm system. On fire alert, all controlled barriers, doors, and gates automatically release to enable free evacuation.

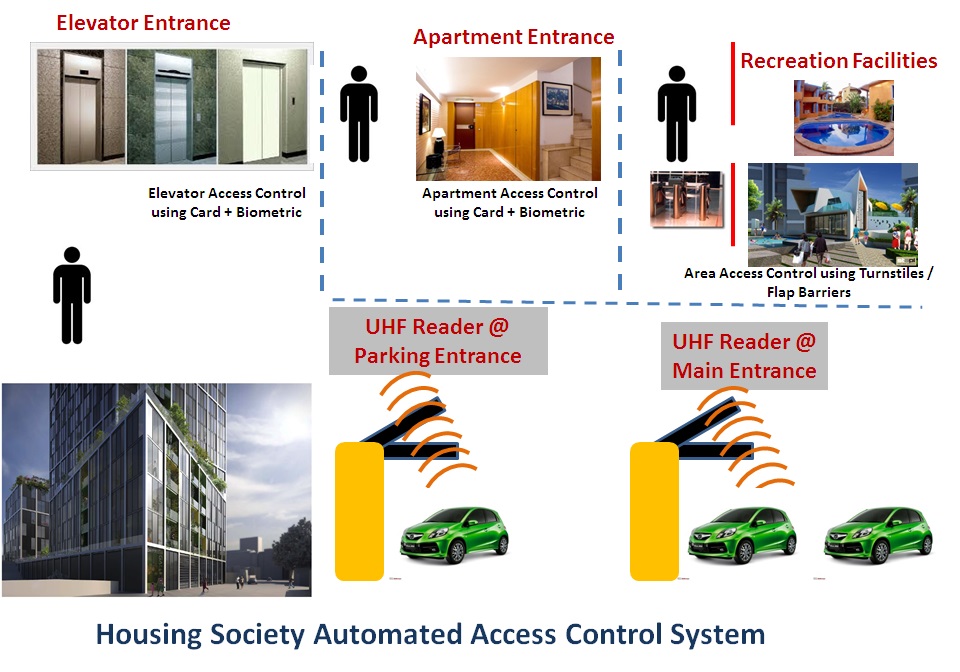

How Society Access Control Works — The Resident Experience
From vehicle approach to apartment floor — a seamless, automated journey through every access control point in the housing society
Vehicle Approaches Gate
Resident's registered vehicle approaches the society entry. The HID system detects the vehicle tag or card — boom barrier rises automatically.
Pedestrian Enters via Tripod
Walking residents or family members tap their HID card at the tripod turnstile — the gate releases for authorised residents, stays locked for unregistered individuals.
Building Entry — Card Access
At the building lobby door, resident taps their HID card. Access is granted only for their registered building — other building doors remain locked to their card.
Elevator — Floor-Wise Access
Inside the elevator, resident taps HID card. Only their authorised floor button is activated — all other residential and restricted floors remain locked.
All Events Logged
Every access event — vehicle entry, turnstile, building door, elevator — is logged with timestamp in the society access control software for security audit.
Key Innovation — Automatic Boom Barrier on Vehicle Approach
A standout feature of this society access control deployment is the automatic boom barrier trigger on vehicle approach. Unlike systems requiring the driver to stop and present a card, Cybernetics configured the DLF system so that when a flat owner's registered vehicle reaches a specific detection point, the boom barrier rises automatically — creating a seamless, frictionless entry experience that is a hallmark of a premium gated community.
HID Controllers Used in the Society Access Control System
HID V1000, V100, and V300 form the hardware backbone of this fully integrated housing society access control architecture
HID Controller V1000
Primary Society Controller
- Master controller for the entire society access control network
- TCP/IP networked — communicates with all sub-controllers
- Manages boom barrier triggers, building access rules, and elevator permissions
- Supports large resident databases and multi-card formats
- Central hub for the Cybernetics society access control software
HID Controller V100
Building Door Controller
- Single-door HID controller for building lobby and floor entry points
- Connects to V1000 primary controller via Ethernet
- Manages HID card reader authentication at each building entrance
- Enforces building-wise restriction — only authorised residents gain entry
- Fully managed through the central society access control software
HID Controller V300
Elevator & Barrier Module
- Specialist HID controller integrating boom barriers, tripods, and elevator relays
- Triggers boom barrier to open when registered vehicle approaches
- Manages tripod gate release for authorised pedestrian entry
- Controls elevator floor-wise access per resident card configuration
- Integrates with fire alarm system for emergency access release
DLF Housing Society, Gurgaon — Society Access Control Deployment
Fully automated residential security for a premium DLF gated community using HID access control, boom barriers, and building-wise card access
DLF Housing Society, Gurgaon
Gurgaon, Delhi NCR · Society Access Control deployed 2014 · HID V1000, V100, V300 · Boom Barrier · Tripod · Elevator · Fire Integration
Client Requirements
- DLF is a fully integrated premium housing society — required complete society access control automation for a superior resident experience
- Boom barrier to open automatically when a flat owner's car reaches a specific approach point — no manual card swipe required while driving
- HID access card to grant access to the resident's specific building only — no entry to other buildings in the complex
- HID card to allow access to the resident's specific floor only in the elevator — all other floors locked
- Tripod gate integration for controlled pedestrian entry to the society premises
- Fire alarm integration with all access control points for safe emergency evacuation
- Support for multiple card formats to accommodate different resident credential types
Cybernetics Solution
- Deployed Cybernetics society access control software integrated with HID V1000, V100, and V300 controllers across the entire DLF premises
- Configured automatic boom barrier trigger — vehicle detection at approach point sends signal to HID V300 to raise the barrier without requiring the driver to stop
- Integrated HID card reader at each building entry door — each resident card programmed for their building only
- HID V300 integrated with elevator relay for floor-wise access — resident card activates only their authorised floor button in the lift
- Configured tripod turnstile integration with HID controller for pedestrian access management
- Enabled fire alarm integration — all barriers, gates, and doors auto-release on fire alert
- Configured multi-card format support in the society access control software for flexible credential management
Results & Benefits
- Fully automated housing society experience — residents enter without stopping at any controlled point
- Zero unauthorised access to residential buildings or floors — society access control fully enforced at every layer
- Secure, monitored environment for residents — all visitor and contractor access controlled and logged
- Automatic boom barrier eliminates vehicle queues and removes manual guard-resident interaction for every entry
- Fire integration ensures resident safety is never compromised by security systems during emergencies
- Multi-card format support makes the society access control system future-proof and flexible
Key Features of the Society Access Control System
Every security layer of the housing society — from the vehicle gate to the apartment floor — managed through one integrated system
Automatic Boom Barrier — Vehicle Entry
Registered flat owner vehicles trigger the boom barrier automatically on approach — no stopping, no manual card swipe, no security guard intervention needed for authorised residents.
Tripod Gate — Pedestrian Access Control
Tripod turnstile gates integrated with HID controllers manage pedestrian entry. Residents tap their card to pass; visitors are held at the gate until cleared by security or a resident.
Building-Wise Card Restriction
Each resident's HID access card is programmed only for their specific building within the society. Other building entry points remain locked to their card — enforcing building-level privacy.
Elevator Floor-Wise Access Control
HID elevator integration means each resident's card activates only their authorised floor button in the lift — all other floors remain disabled. Prevents cross-floor access by neighbours.
Fire Alarm Integration
All society access control points integrate with the fire alarm system. On fire alert, every barrier, gate, and controlled door automatically releases — enabling safe, unobstructed evacuation.
Multi-Card Format Support
The society access control software supports multiple HID card formats — allowing the system to accommodate different credential types for residents, staff, and contractors on one platform.
Visitor Access Management
Security staff can issue temporary visitor cards or register guest vehicles. Visitors are restricted to permitted zones only — lobby, parking, or specific floors — with all events logged.
Access Logs & Audit Trail
Every entry and exit event — vehicle, pedestrian, building, elevator — is logged with timestamp and resident ID in the society access control software for complete security audit capability.
Society Access Control System — End-to-End Workflow
How residents, visitors, and vehicles are managed from enrolment to daily access in a fully automated housing society
Resident Enrolled in System
Society admin adds the resident profile in the access control software — assigning their building, floor permissions, vehicle tag, and issuing their HID access card.
Vehicle Tag & Card Issued
Resident receives their HID card for pedestrian and building access, and their vehicle RFID tag — both linked to their profile in the society access control system.
Vehicle Approach — Barrier Opens
When the resident's vehicle reaches the detection point at the society gate, the boom barrier rises automatically — seamless entry without stopping.
Pedestrian Tap — Tripod Releases
Walking residents tap their HID card at the tripod turnstile — it releases for authorised residents and remains locked for unregistered persons.
Building Door — Card Verified
At their building entrance, resident taps card — access granted to their building only. All other building doors remain locked to their card.
Elevator — Floor Activated
Resident taps card in the lift — only their authorised floor button activates. All other floors remain locked. Every trip is logged in the system.
Which Societies Need an Access Control System?
Society access control is relevant for any residential or gated community where security, resident privacy, and visitor management are priorities
Premium Gated Communities
Like DLF — fully automated entry, building access, and elevator floor control are expected features of premium residential living in Gurgaon, Pune, and metros.
Multi-Tower Apartment Complexes
Large complexes with multiple towers need society access control to ensure residents can only enter their own tower — preventing cross-building access by other residents.
Cooperative Housing Societies
Cooperative societies can implement society access control to restrict vehicle parking access, building entry, and visitor management at an accessible budget point.
Builder & Developer Projects
Builders like DLF integrate society access control during construction planning — delivering a ready, automated security system as part of the project's premium offering.
Mixed-Use Residential Complexes
Complexes combining residential towers, retail, and amenities need society access control to separate resident-only areas from public-access commercial zones.
Villa & Row-House Communities
Gated villa communities use boom barrier and tripod integration with society access control to manage vehicular and pedestrian entry at the main perimeter gate.
Frequently Asked Questions — Society Access Control
Everything housing societies, builders, and facility managers need to know before deploying a society access control system
What is a society access control system?
How does the automatic boom barrier work in a housing society?
Can a society access control system restrict residents to their own building and floor?
What hardware is used in the society access control system?
Does the society access control system integrate with the fire alarm?
How does the society access control system manage visitors?
